Features
The factory production of plastic food box machinery and equipment, one step in place to complete the extrusion sheet and plastic molding all the processing processes, with plastic particles and scrap processing directly forming the required products can be widely used in food, electronics, toys, hardware And other packaging products, the main technical characteristics and economic benefits are as follows:
1、The blister unit of the unit overcomes the shortcomings of the original intermittent forming work efficiency. Instead of using plastic particles to process the sheet, heat the sheet, and then use the plastic into the machine to obtain the desired product.

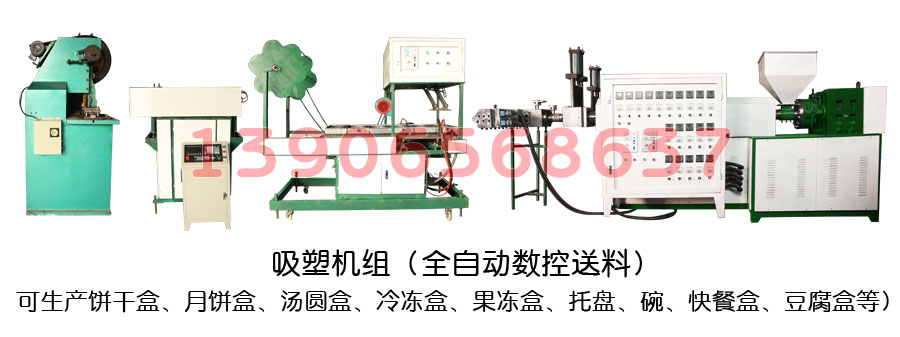

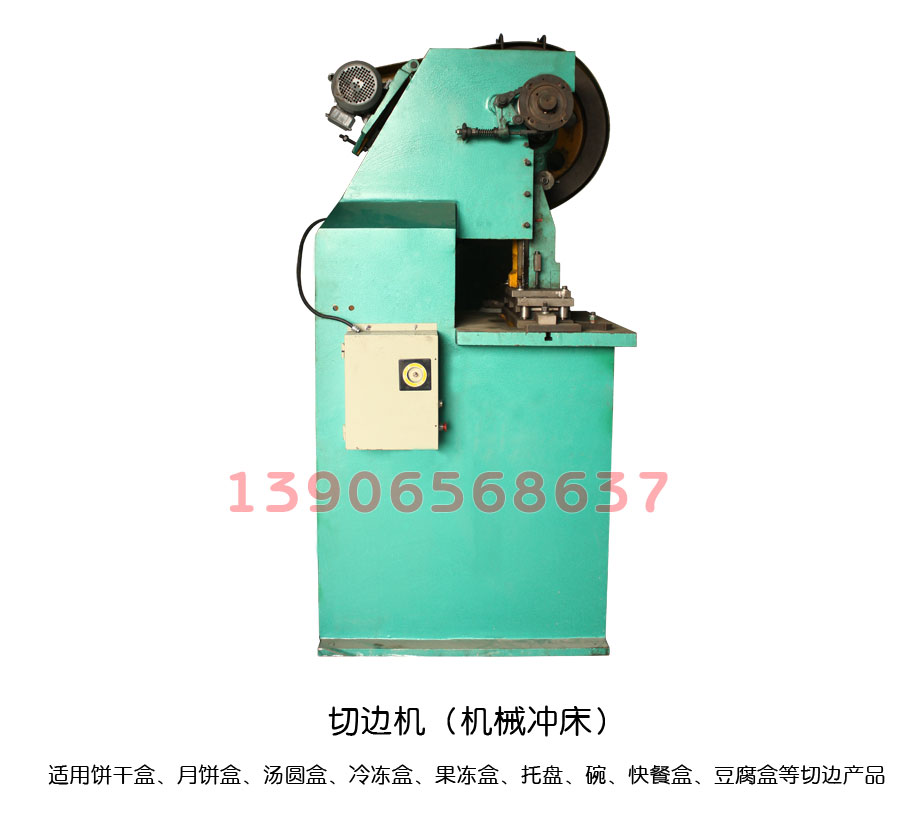

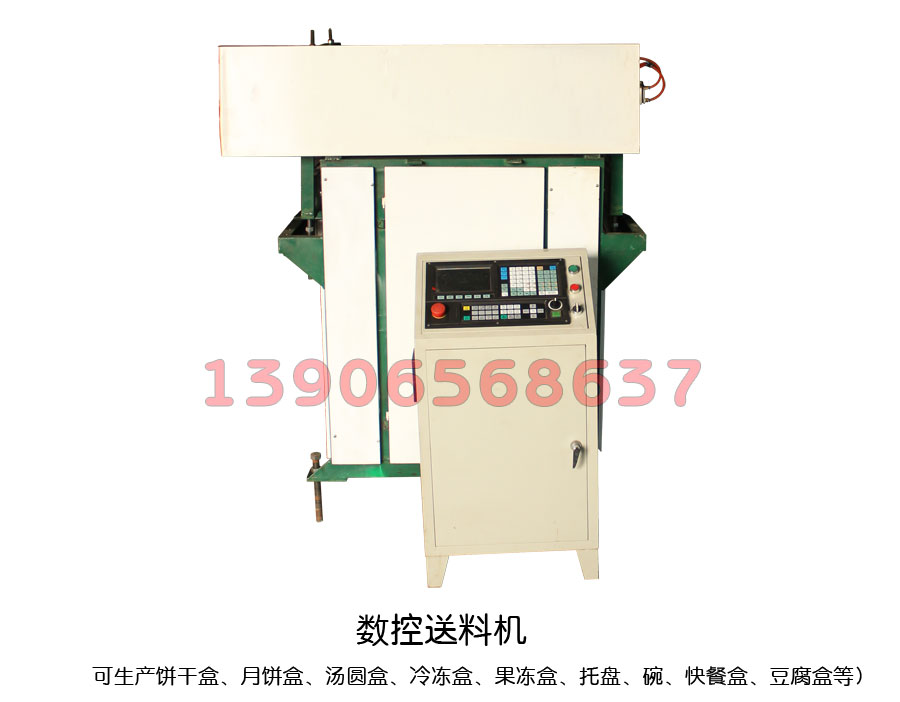

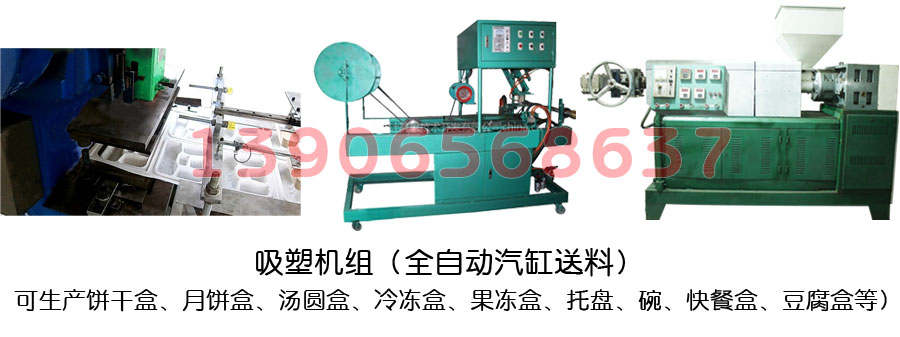

2、The unit to plastic extrusion machine and plastic molding machine, automatic feeder, punching machine together, synchronized work to complete the required products.
3、The machine can be used with scrap, plastic and plastic particles mixed with processing molding products, PP, PE, HIPS and other plastic plastic molding.

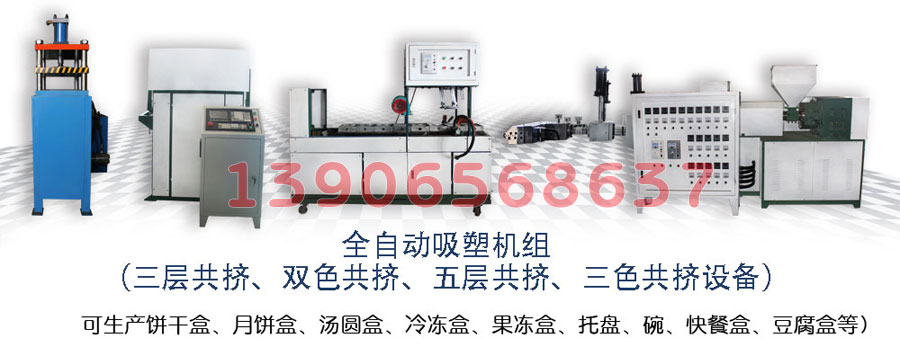

4、The machine can produce two or more layers, two or more colors of the product. Provide the necessary quality of service for production.
5、The machine produces faster, with an average area of 120mmX160mm within the calculation, can produce 86 products per minute, according to the product thickness requirements, can be adjusted to control the thickness of the product.
6、The machine to reduce investment by about 20%, saving 35% of electricity, improve efficiency by 25%, reducing labor intensity and enhance the economic benefits.
Product Specifications

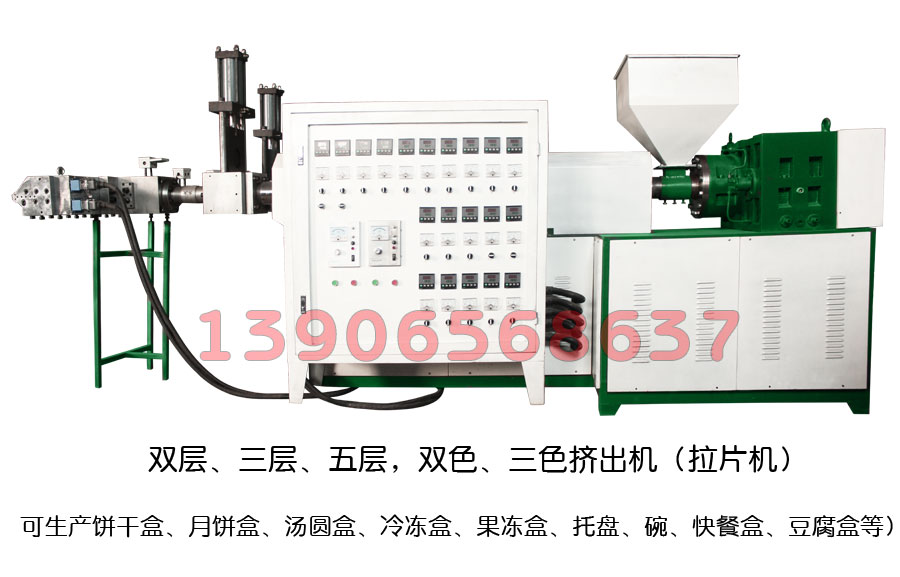

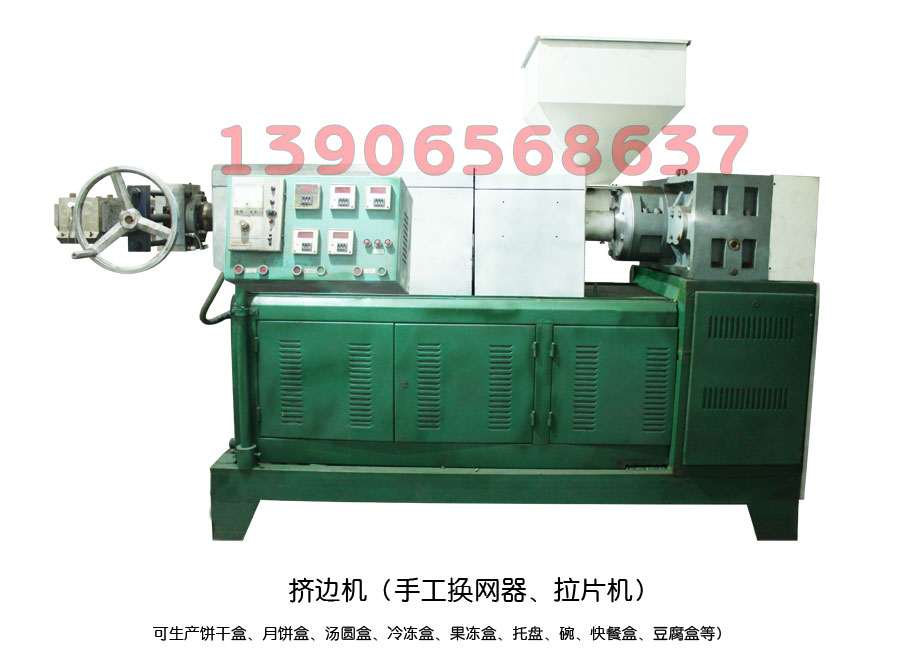

Plastic extruder
Category / model | JT65 | JT80 | JT90 |
Motor Power | 11KW | 15KW | 18.5KW |
Screw length to diameter ratio | 25(28):1mm | 25(28):1mm | 25(28):1mm |
heating power | 16KW | 20KW | 22KW |
Working speed | 30-40S/M | 30-40S/M | 30-40S/M |
Dimensions | 2600x1200x1500mm | 2900x1200x1520mm | 3200x1200x1540mm |
weight | 1800kg | 2100kg | 2400kg |
If the technical parameters are updated, no notice will be given |
Note: "65" of JT65 indicates the diameter of the extruder screw

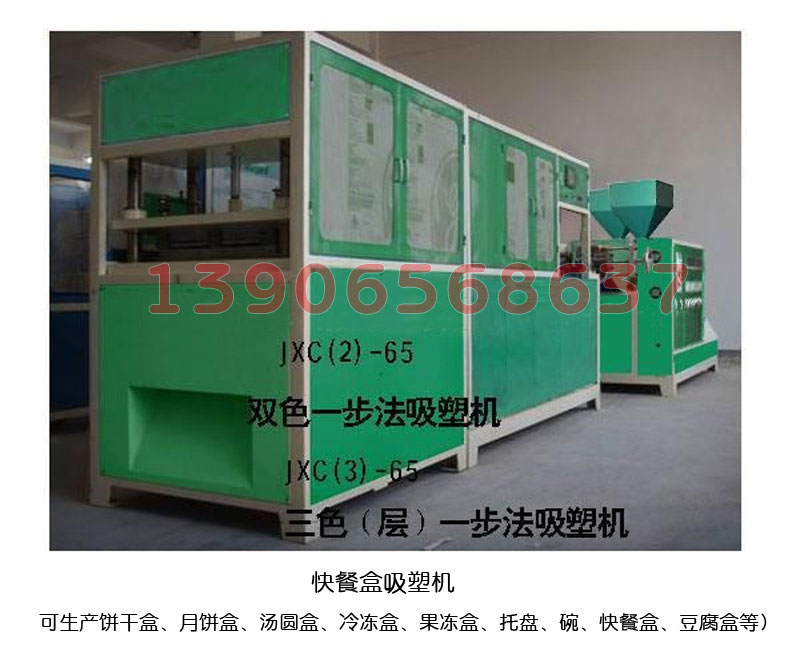

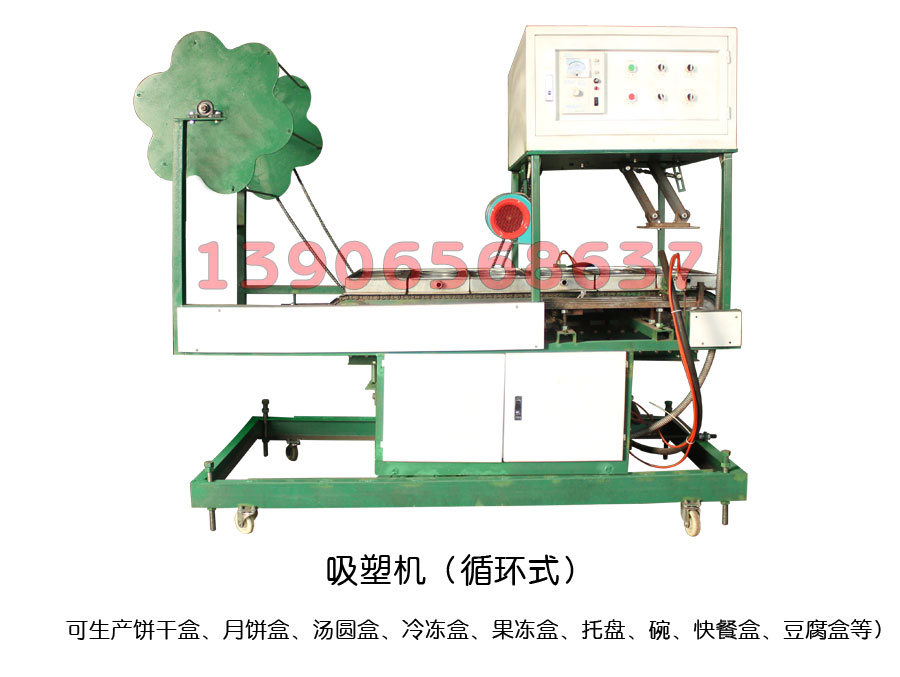

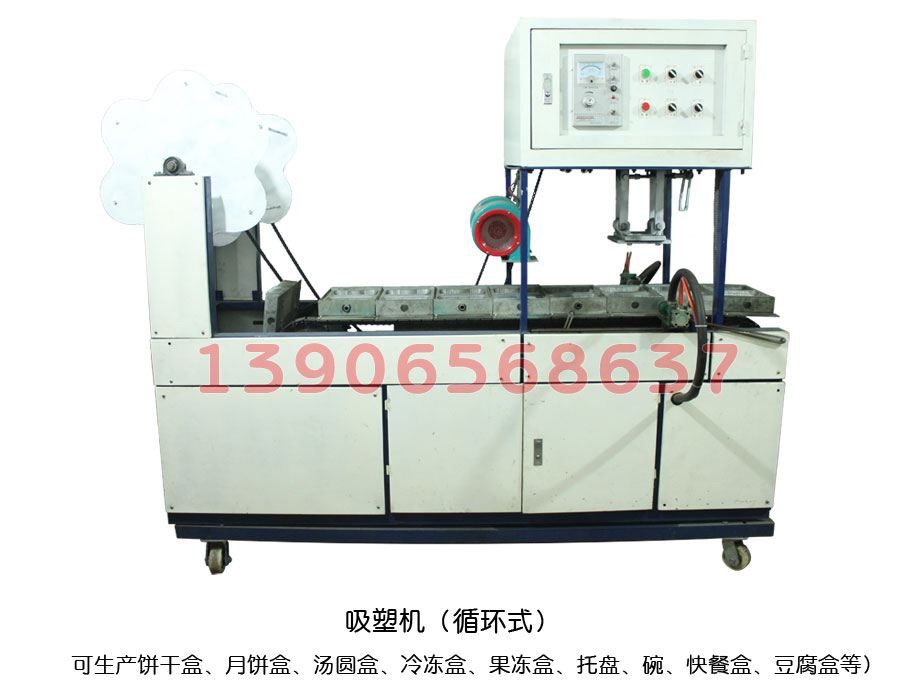

Forming plastic machine
Category / model | φ65 Screw | φ80 Screw | φ90 Screw |
Motor Power | 0.75KW | 0.75KW | 1.1KW |
Working speed | 25-32 S/min | 25-32 S/min | 25-32 S/min |
Maximum forming area | 300x260mm² | 520x260mm² | 720x260mm² |
Maximum forming depth | 60m | 60m | 70m |
Dimensions | 1900x650x1600mm | 1900x800x1600mm | 1900x900x1600mm |
weight | 600kg | 650kg | 740kg |
The above equipment can produce the following products
